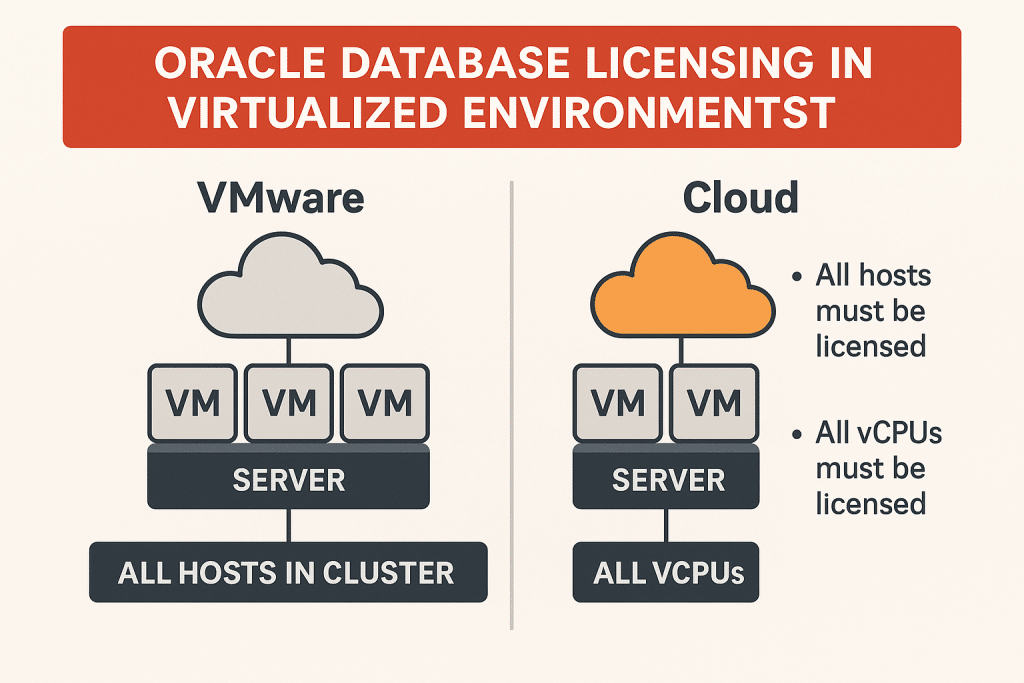

Oracle Database Licensing in Virtualized Environments (VMware & Cloud)
Oracle database licensing becomes particularly complex in virtualized environments, such as those provided by VMware and public clouds.
This article explains how Oracle’s licensing rules apply to virtualization, including VMware clusters and authorized cloud platforms (AWS, Azure).
Enterprise IT leaders will learn why Oracle treats soft partitioning differently from hard partitioning, how to count licenses in the cloud (e.g., two vCPUs = one license), and strategies to remain compliant while controlling costs.
It’s a must-read for CIOs, CTOs, and IT asset managers dealing with Oracle databases on virtual platforms.
Read Oracle Database Licensing Cost Optimization Strategies.
The Virtualization Challenge for Oracle Licensing
Virtualization enables the flexible use of hardware, but Oracle’s licensing doesn’t easily adapt to it. Unlike many vendors, Oracle typically does not account for common virtualization limits when calculating license counts.
If Oracle software is installed in a virtual environment, you may be required to license beyond the VM’s virtual CPUs to cover the underlying physical infrastructure:
- “Installed and/or Running” Rule: Oracle requires a license for every processor where its software is installed or running. In virtualized setups, this extends to any host that could run an Oracle VM.
- Soft vs. Hard Partitioning: Oracle distinguishes between soft partitioning (software-based virtualization, such as VMware or Hyper-V) and hard partitioning (hardware or Oracle-approved methods of limiting CPU usage). This distinction directly impacts the number of licenses you need, which we detail below.
In short, without proper planning, running an Oracle Database on a VMware farm or in the cloud can lead to licensing all the physical cores in those environments – potentially a very expensive surprise.
Oracle Licensing on VMware (Soft Partitioning)
VMware vSphere is considered “soft partitioning” by Oracle. This means Oracle does not accept VMware’s virtual CPU assignments as a limit for licensing. Key implications for a VMware environment:
- All Physical Cores Must Be Licensed: If an Oracle database VM can run on a VMware host or be moved across a cluster, every physical core in that host or cluster requires licensing. Even if the VM only uses two vCPUs, Oracle assumes it could utilize any available core.
- Cluster-Wide Scope: In a VMware cluster with multiple hosts, an Oracle VM that has access to the cluster (through vMotion or a similar mechanism) effectively ties all hosts to the licensing requirement. For example, a cluster of 4 hosts with 10 cores each (40 cores total) would require 40 cores worth of Oracle licenses for a single Oracle VM, unless it is contained on fewer hosts.
- vCPU Limitation Doesn’t Apply: Reducing a VM’s vCPU count (e.g., pinning it to 2 vCPUs) doesn’t reduce license needs, because Oracle licenses are based on physical cores, not virtual allocation, in non-approved virtualization environments.
Practical Example (VMware): Suppose you have a VMware cluster of 3 hosts, each with 16 cores (total 48 cores). You deploy one Oracle Database VM with four vCPUs.
Oracle will require licensing for all 48 physical cores, not just the four vCPUs, because that VM could potentially run on any host in the cluster. In Oracle’s eyes, the entire cluster is “tainted” for licensing.
Containment Tip: To avoid licensing every host, some companies create a dedicated VMware cluster for Oracle. Suppose you restrict all Oracle VMs to a specific host or small cluster (using VM affinity rules and documented procedures to prevent migrations). In that case, you only need to license those specific physical cores.
For instance, pinning the Oracle VM in the above example to a single 16-core host would reduce the required licenses from 48 cores to 16 cores—a significant savings.
However, this must be strictly controlled and documented to be defensible in the event of an audit.
Hard Partitioning and Oracle-Approved Virtualization
Oracle does accept certain hard partitioning technologies to limit license counting.
Hard partitioning means the virtualization method physically or verifiably restricts Oracle’s usage to a subset of hardware.
Oracle maintains a list of approved hard partitioning technologies:
- Oracle VM Server (OVM) – When configured with CPU pinning/hard partitions.
- Oracle Linux KVM – With Oracle’s specified hard partitioning methods.
- IBM LPAR (Logical Partitions) on IBM Power systems.
- Solaris Zones – Only if configured as capped zones (fixed cores).
Using these methods, you can license only the assigned cores. For example, if an Oracle database is confined to 4 cores in an IBM LPAR on a 32-core machine, you only need to license those four cores (with appropriate proofs of the cap). Oracle’s Partitioning Policy document details these approved technologies and their proper use – it’s crucial to follow Oracle’s guidelines exactly.
All other virtualization platforms (including VMware, Hyper-V, Docker containers, Kubernetes, etc.) are not recognized for sub-capacity licensing.
They fall under soft partitioning rules, meaning they do not reduce the licensing requirement – you’d need to cover the full physical environment where Oracle could run.
Oracle Licensing in Public Clouds (AWS & Azure)
Oracle has made specific exceptions for certain public cloud providers, labeling them “Authorized Cloud Environments.”
As of 2025, Amazon Web Services (AWS) and Microsoft Azure are officially authorized for Oracle technology licensing (Oracle’s policy documentation explicitly names these).
This authorization means special licensing rules apply in the cloud:
- vCPU-Based Licensing: In AWS and Azure, Oracle uses virtual CPUs as the basis. Generally, Oracle counts two vCPUs as equivalent to 1 Oracle processor license (assuming hyper-threading is enabled). In other words, if an EC2 or Azure VM has eight vCPUs, it requires four processor licenses.
- No Core Factor in Cloud: Oracle’s usual core factor table (which gives a 0.5 factor for certain Intel cores, etc.) does not apply in authorized clouds. The conversion of vCPUs to licenses is fixed (2 vCPUs = one license), simplifying calculations but sometimes raising costs for cores that would have a favorable factor on-prem.
- Example (AWS/Azure): A VM with eight vCPUs running Oracle Enterprise Edition needs four licenses (8 ÷ 2). If the same VM runs Oracle Standard Edition 2, it is considered 2 “sockets” (since SE2 licenses up to 4 vCPUs as one socket), so eight vCPUs would need 2 SE2 licenses. Important: Standard Edition 2 in the cloud is limited – Oracle allows SE2 only on VMs with up to 8 vCPUs (since two sockets of 4 vCPUs each are supported). Larger VMs must use Enterprise Edition licenses.
- Bring Your Own License (BYOL): Enterprises can apply their existing Oracle licenses to cloud instances. You must ensure that you have enough licenses for the total number of vCPUs in use. Cloud providers often assist by providing BYOL-certified images – but it’s up to you to remain compliant (e.g., not launching more Oracle VMs than you have licenses for).
- License-Included Options: Both AWS and Azure also offer “license included” services (like Oracle on AWS RDS or Oracle Autonomous Database on the Azure Market). In such cases, the cloud provider’s pricing includes the Oracle license on a subscription or hourly basis. This can be convenient for short-term or elastic use, but is typically more expensive over the long run than BYOL if you already own licenses.
Note: Oracle treats other clouds similarly to AWS and Azure, unless explicitly stated in policy (many assume Google Cloud follows the same 2 vCPU = 1 license rule, although Oracle’s documentation has historically not listed GCP explicitly).
Always check the latest Oracle cloud policy – but as a rule, if a cloud isn’t authorized, Oracle could default to requiring full host licensing (which is generally impractical for public cloud, hence why they authorized the major ones).
Strategies to Manage Licensing in Virtual Environments
CIOs and IT architects can employ several strategies to stay compliant and optimize license use in virtualized setups:
- Dedicated Environments: Segregate Oracle workloads to specific physical servers or clusters. This containment prevents license requirements from “sprawling” across large farms. Document and enforce that Oracle VMs do not migrate to unlicensed hosts.
- Hard Partitioning Where Possible: If your infrastructure allows, use Oracle-approved virtualization for sub-capacity licensing (e.g., Oracle OVM or IBM LPAR for Oracle workloads). This guarantees Oracle will accept a reduced license count.
- Cloud Sizing and Selection: When using the cloud, carefully select instance sizes to match your licenses. For example, if you own 4 Oracle processor licenses, you can run up to 8 vCPUs in AWS/Azure for EE. Don’t oversize VMs beyond what you have licensed. Monitor your cloud dashboards for any VM changes that could affect the vCPU count.
- License Tracking: Maintain a clear inventory of where Oracle is installed across all virtual environments. Consider tools that map VMs to physical hosts for VMware, and track all cloud instances running Oracle. This helps prevent compliance issues by clearly identifying what requires licensing.
- Review Oracle’s Policies: Oracle’s stance on virtualization is defined in policy documents and cloud terms. These can update over time. Ensure your team stays informed on the latest rules – for instance, any newly authorized cloud or changes in partitioning policy.
With the above measures, enterprises can avoid the most costly pitfalls of virtualization. Next, we provide key recommendations summarizing how to handle Oracle licensing in virtual and cloud environments.
Recommendations
- Isolate Oracle Workloads: Dedicate specific hosts or clusters for Oracle databases in VMware. This limits the number of physical cores you must license and simplifies compliance.
- Document VM Restrictions: If using VMware or Hyper-V, implement and document affinity rules to prevent Oracle VMs from being moved to unlicensed hosts. Clear evidence of this is critical for audit defense.
- Leverage Hard Partitioning: Utilize Oracle-approved virtualization (such as OVM or physical partitioning) to legitimately reduce license counts. For example, cap CPUs via hard partitions so Oracle only uses licensed cores.
- Optimize Cloud Usage: In AWS or Azure, select VM sizes that align with your licensing requirements. Remember, two vCPUs = 1 license for Enterprise Edition. Avoid deploying Oracle on oversized VMs that consume extra licenses.
- Monitor vCPU and Core Changes: Track any changes in your virtual environment (adding hosts, increasing vCPUs, cluster expansions). Proactively adjust your licensing or VM placement to stay compliant.
- Authorized Clouds Only: Stick to authorized cloud environments for Oracle databases (AWS, Azure). Other clouds or unmanaged virtualization might trigger Oracle’s full physical licensing rules, which are usually cost-prohibitive.
- Understand DR Exceptions: Virtualized disaster recovery servers are not automatically free. Oracle’s 10-day rule allows brief failover use on unlicensed hardware; however, beyond that, licenses are required. Incorporate this into HA/DR architecture decisions.
- Consult Oracle’s Policies: Regularly review Oracle’s official partitioning policy and cloud licensing policy documents. Align your virtualization strategy with these rules to avoid surprises.
- Engage Experts for Audits: If Oracle initiates a license audit on your virtual infrastructure, involve licensing experts. Virtual environments are notoriously disputable in audits – having evidence and expert guidance can save millions.
- Plan for Worst-Case: Always budget and plan as if Oracle will require full licensing of a environment unless you have airtight controls. This conservative approach ensures no nasty surprises in cost or compliance down the line.
FAQ
Q: If I run an Oracle Database on a VMware VM with two vCPUs, do I only need to license two cores?
A: No. Oracle doesn’t license by vCPU in VMware. You must license all physical cores on any host where that VM could run. A small 2-vCPU Oracle VM could require licensing dozens of cores if it resides in a large cluster.
Q: Can limiting or “pinning” an Oracle VM to one host reduce licensing needs?
A: Yes. If you isolate an Oracle VM to a single host or subset of hosts (and ensure it cannot move elsewhere), you only need licenses for those specific hosts. This is a common strategy to contain Oracle license costs in VMware environments.
Q: Does Oracle recognize Microsoft Hyper-V or other hypervisors for sub-capacity licensing?
A: No – technologies like Hyper-V, Citrix Xen, Red Hat KVM (without Oracle’s hard partitioning), and others are treated as soft partitioning. Oracle requires full host licensing similar to VMware, unless you use an approved hard partition method.
Q: What is the 2 vCPU = 1 license rule in cloud environments?
A: For authorized clouds (AWS and Azure), Oracle stipulates that each pair of vCPUs counts as one Oracle processor license (assuming hyper-threading). For example, four vCPUs equals 2 licenses for Oracle Database Enterprise Edition in AWS or Azure.
Q: Is the core factor still applied when licensing Oracle on cloud VMs?
A: No. The core factor table (which discounts certain processor cores) is not used in public cloud licensing. Oracle uses the straightforward vCPU-to-license conversion instead. This means that even processors with a 0.5 core factor on-premises (like many Intel CPUs) are effectively counted at full weight in the cloud.
Q: Do I need to license every AWS/Azure VM running Oracle, even temporary ones?
A: Yes. Every active instance running Oracle needs to be covered by a license, either through BYOL (using your existing licenses) or by using a cloud “license included” service. Even for short-term use, you must have licenses or use a paid Oracle cloud service that includes them.
Q: What if I use Oracle’s own virtualization (Oracle VM Server or OVM)?
A: Oracle VM Server, when configured correctly with hard partitioning (also known as CPU pinning), is accepted by Oracle for license limitations. For example, pinning an Oracle Database VM to 4 cores in OVM means you can purchase licenses for just those four cores. The key is to follow Oracle’s documented procedure for OVM partitioning.
Q: Does running Oracle on VMware or the cloud impact support with Oracle?
A: Oracle will generally provide support for issues on authorized cloud platforms (AWS, Azure) as they are officially allowed. For VMware, Oracle’s support can be a bit more complicated – Oracle’s support policy states they may ask you to reproduce issues on physical hardware if they suspect virtualization is the cause. However, licensing-wise, as long as you’re compliant, support should still be available (with the caveat of troubleshooting).
Q: Are there any exceptions where Oracle allows free failover in virtual environments?
A: Oracle has a 10-day failover rule for disaster recovery: you can run a copy of the Oracle Database on an unlicensed server for up to 10 days total per year (for DR testing or actual failover) without buying a license for that server. However, this is typically considered for physical standby servers. In a VMware context, tracking this is challenging – it’s safer to assume that any continuously running instance requires a license.
Q: How can I verify compliance in my virtualized Oracle environment?
A: Conduct regular internal audits to map all VMware clusters or cloud instances where Oracle is installed. Check that you have purchased licenses equal to or greater than the required count (all applicable cores or vCPUs). It may help to use Oracle’s LMS audit scripts on the VMs (to find where Oracle is installed) and also maintain documentation of any host segregation or restrictions you’ve implemented. If in doubt, consult an Oracle licensing specialist to review your architecture and ensure compliance with Oracle licensing requirements.
